- 19
Dec - 2016PCB/Board designs
2 min | 2747Table of contentShowHi everybody! I am back again! After almost a-two whole week(s) of code cleaning and updating I've just uploaded two 'new' libraries:
RF24: https://goo.gl/3fTmlJ
RF24Network: https://goo.gl/KONmkUThese libraries are an extension to the great nrf24 libraries provided by TMRh20 and allow to connect the nRF24L01+ to the following TI-Launchpads:

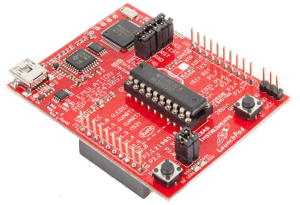

- MSP430G2553

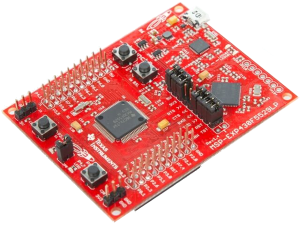

- MSP430F5529LP

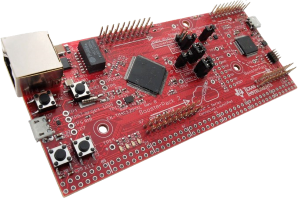

- TM4C1294XL
- more are coming in the next days!
In the following days I am updating some example codes for CCS (Code Composer Studio) and EAGLE files. Stay tuned!!!
I am calling this project DIVA (#ProjectDIVA), and I hope you find it interesting!
Things used in this project
Hardware components
Wiring
Pinout

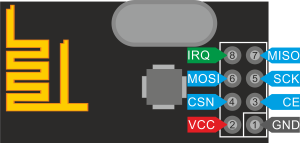

nRF24L01+ module schematics Connections
GND ( PIN1
) -GND
VCC (PIN2
) -3V3
CE (PIN3
) - GPIO (P2.0
)
CSN (PIN4
) - GPIO (P2.1
)
SCK (PIN5
) - SCK (P1.5
)
MOSI(PIN6
) - MISO (P1.7
)
MISO(PIN7
) - MOSI (P1.6
) Debugging (CP2102 USB to TTL)
TXD - RXD (P1.1
)
RXD - TXD (P1.2
)
GND - GND:-------- :-------------: GND ( PIN1
) -GND
VCC (PIN2
) -3V3
CE (PIN3
) - GPIO (P2.5
)
CSN (PIN4
) - GPIO (P2.2
)
SCK (PIN5
) - UCB0CLK (P3.2
)
MOSI(PIN6
) - UCB0SIMO (P3.0
)
MISO(PIN7
) - UCB0SOMI (P3.1
) Debugging (CP2102 USB to TTL)
TXD - UCA0RXD (P3.4
)
RXD - UCA0TXD (P3.3
)
GND - GNDGND ( PIN1
) -GND
VCC (PIN2
) -3V3
CE (PIN3
) - GPIO (PM5
)
CSN (PIN4
) - GPIO (PM4
)
SCK (PIN5
) - SSI2Clk (PD5
)
MOSI(PIN6
) - SSI2Tx (PD1
)
MISO(PIN7
) - SSI2Rx (PD0
) Debugging (CP2102 USB to TTL)
TXD - U6Rx (PP0
) / U7Rx (PC4
)
RXD - U6Tx (PP1
) / U7Tx (PC5
)
GND - GNDMore info & Help
- Original documentation: http://tmrh20.github.io/RF24 - http://tmrh20.github.io/RF24Network/
- nRF24L01+ datasheet: https://www.nordicsemi.com/eng/Products/2.4GHz-RF/nRF24L01P
Changelog
- Revision v1.0
Credit
Based on:
